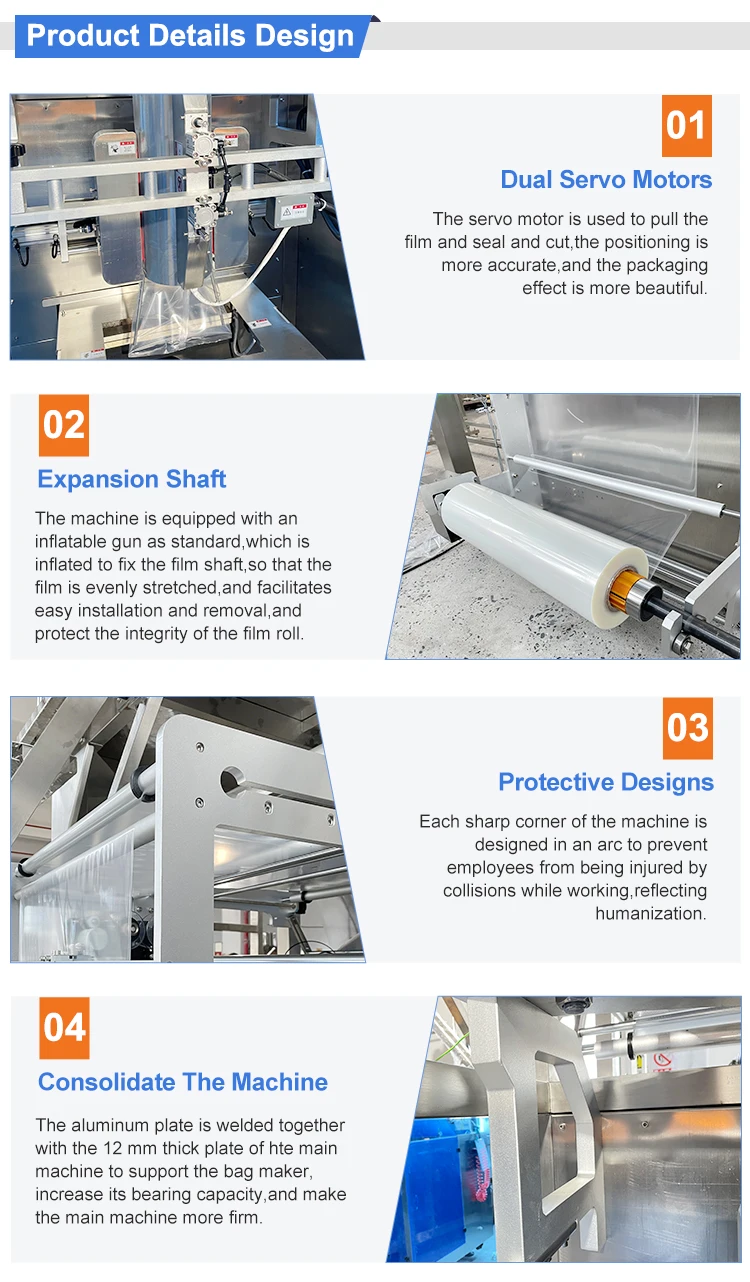

Features:* Famous brand PLC control system, wide version touch screen, convenient to operate…* Servo film pulling system, Pneumatic horizontal sealing. * Perfect alarm system to reduce waste;* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery when it equips with feeding and measuring equipment;* The way of bag making: the machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.* With 3 servo-motor controlled,mechanic horizontal system,The machine is more stable and fast speed than the normal one with pheumatic system controlled.
Main packing machine technical parametes | ||||||||
Model | D-320 | D-420 | D-520 | D-620 | D-720 | D-820 | D-920 | D-1200 |
Bag width(mm) | 40-150 | 60-200 | 80-250 | 100-300 | 100-350 | 160-400 | 100-450 | 200-580 |
Bag length(mm) | 50-200 | 50-300 | 80-380 | 80-450 | 80-470 | 90-500 | 100-570 | 100-600 |
Max roll film width(mm) | 320 | 420 | 520 | 620 | 720 | 820 | 920 | 1200 |
Film material | Heat sealing complex film e.g.OPP/CPP/CE MST/PE/PET,etc. Film thickness::0.04-0.08mm | |||||||
Packing speed(B/M) | 5-80 | 5-70 | 5-60 | 5-50 | 5-60 | 5-50 | 5-40 | 5-30 |
Power supply | 220V50-60Hz | |||||||
power | 1.5kw | 2kw | 2.5kw | 2.8kw | 3.2kw | 4.2kw | 5.2kw | |
