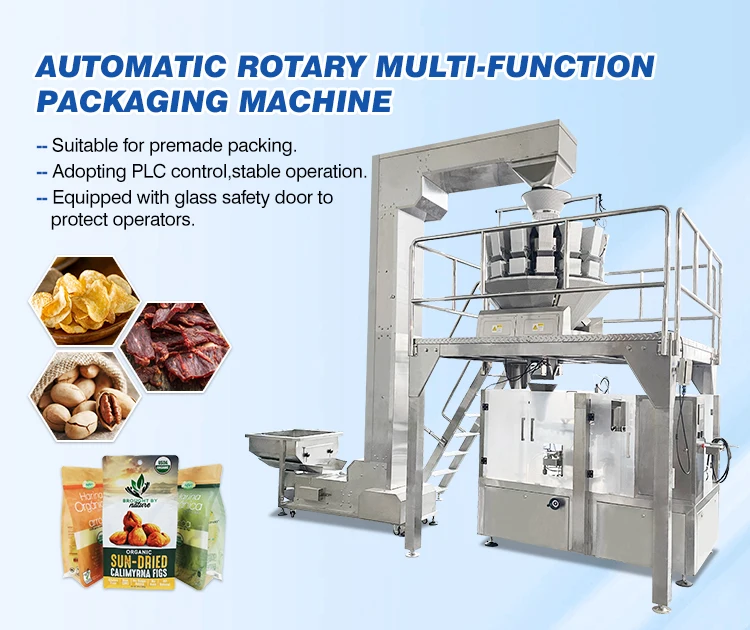

Multi-Function Rotary Stand Up Pouch Packing Machine

, , ,

Multi-Function Rotary Stand Up Pouch Packing Machine

Main Features:
1) Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to makesure the machine operates easily and does accurately.
2) The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3) Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4) The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.

Mo
del
D-200W
Bag width (mm)
100-280mm
Bag length (mm)
100-330mm
Measuring range
1500ml
Packing speed
60 bags /min
Power supply
220V/380V
Machine power
3.5kw 50Hz
Gas consumption
0.5m³
Machine size(mm)
1150(L)x950(W)x1129(H)
Machine weight
1200KG
The application type bag
3-sided bag , 4-sided bag , pillow bag , standing bag , M bags , special bag
