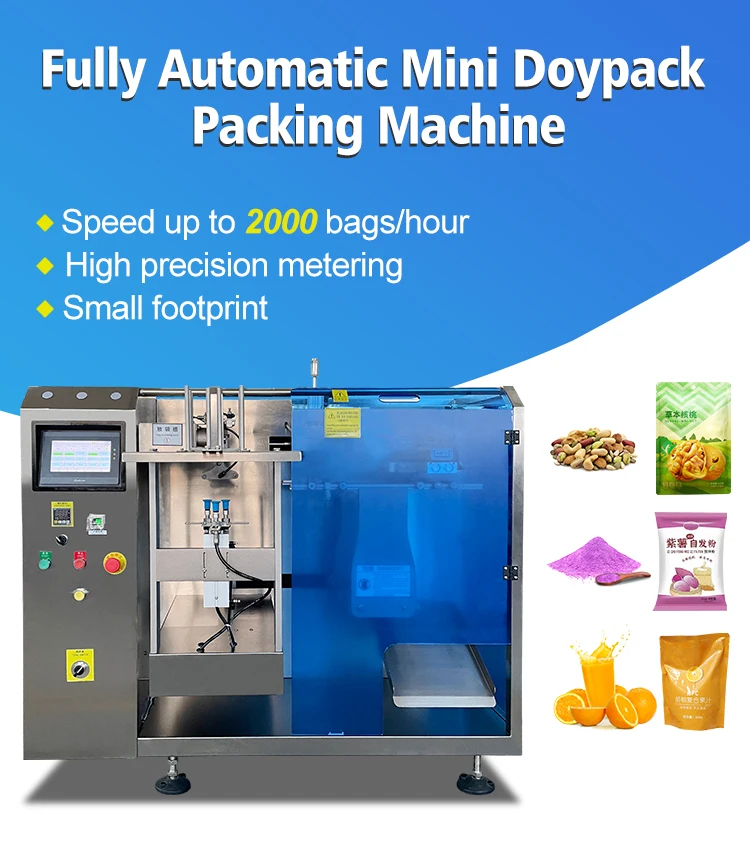

Mini 4-stations Doypack Packing Machine

Mini 4-stations Doypack Packing Machine

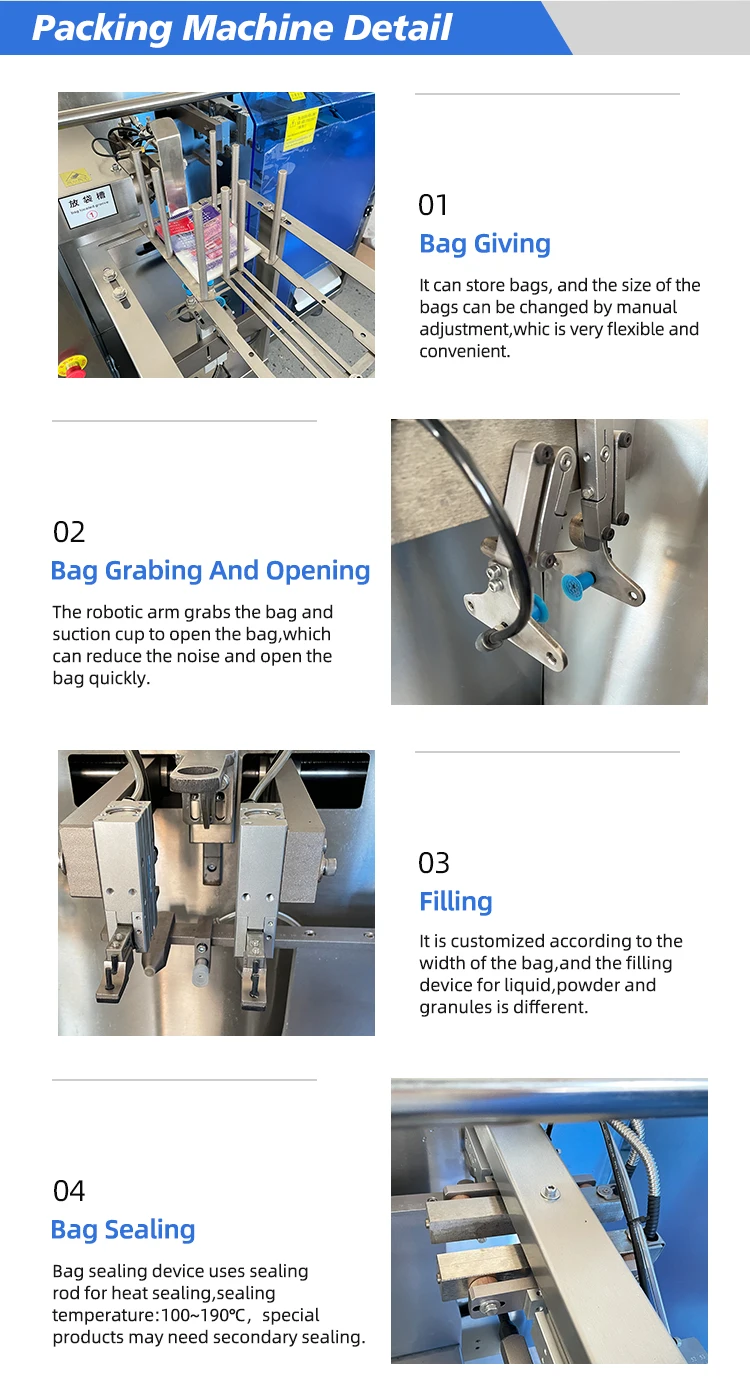

Main Features:
1) Automatic doypack packing machine adopt precision indexing device and PLC to control each action and working station to makesure the machine operates easily and does accurately.
2) The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3) Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4) The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.

Capacity:
10-25bags/min
Pouch Size:
W: 115-200mm * L: max 300mm
Volume:
1.5kg
working pressure
0.6MPA
External Dimension:
1700*1050*1100mm(L×W×H)
weight
500 kg
work rate
2.5KW
