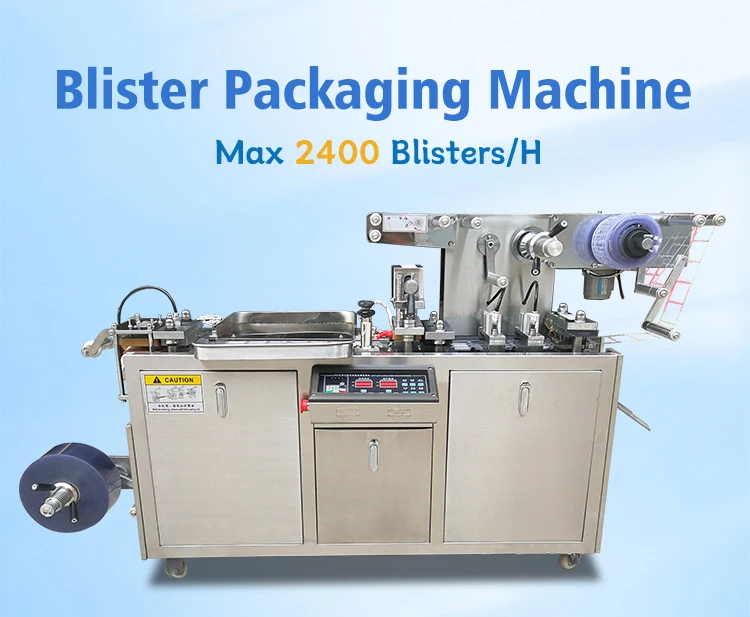

Alu Pvc Flat Plate Blister Packing Machine

Alu Pvc Flat Plate Blister Packing Machine

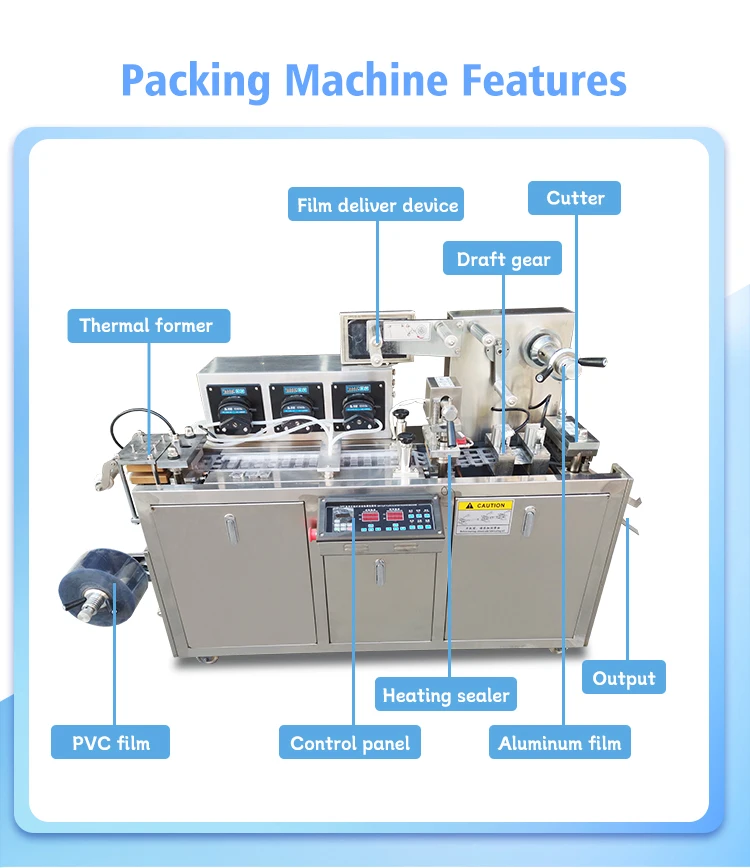

This automatic blister packaging machine is reliably designed, easy to operate, and features a compact stainless steel construction. It operates via PLC automation and a touchscreen control panel, ensuring precision and ease of use. The machine supports both thermoplastic and cold-forming materials, producing 2400 blister packs per hour, and offers customizable depth options. Its pneumatic drive provides stability and reduces maintenance requirements, making it ideal for industries such as food, beverage, and pharmaceuticals.

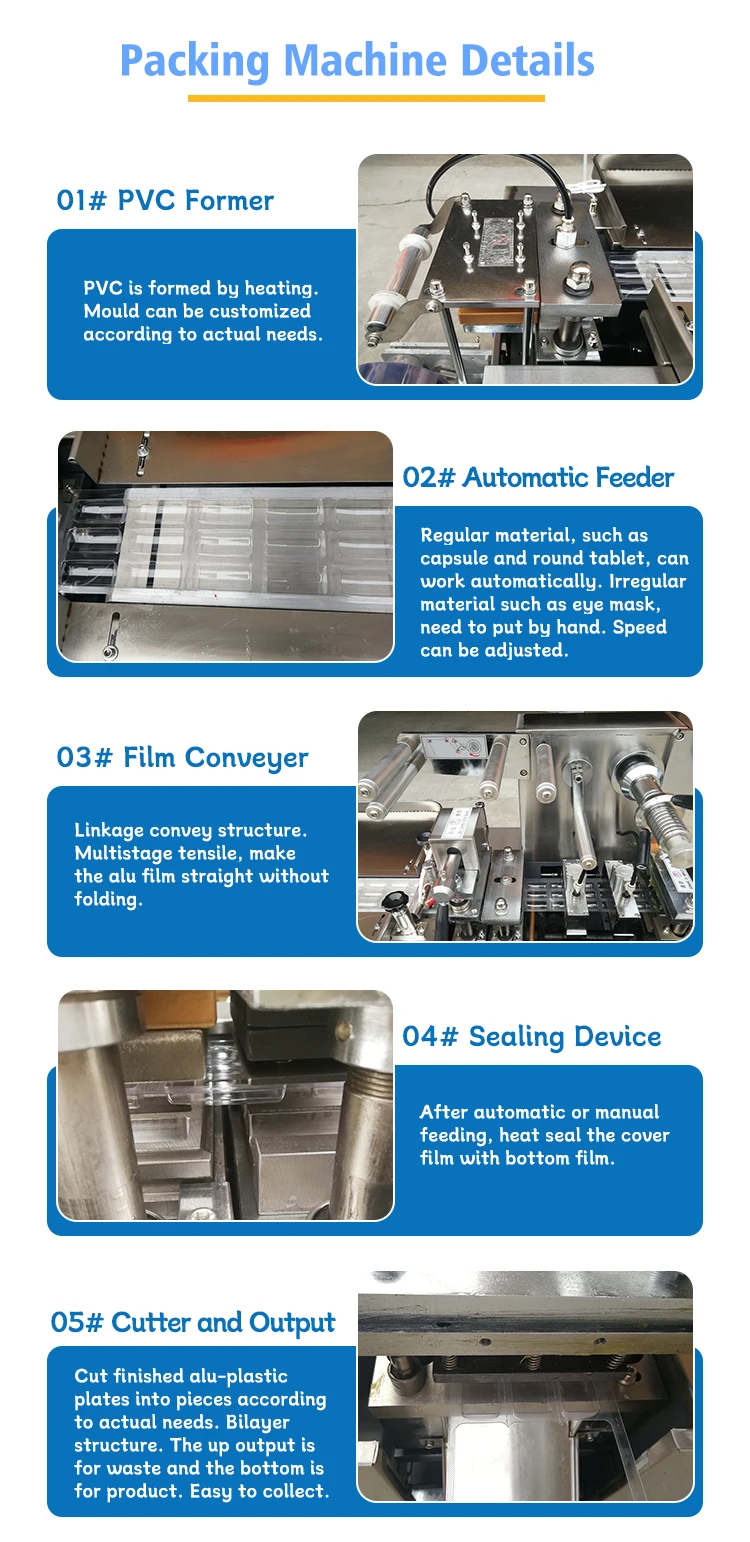

1.It allows forming thermoplastic and cold forming materials

2.It stands out for its simple operation, high reliability and compact design. Its main structure is made of stainless steel.
3.Automation by PLC and operation through touch screen control panel.
4.It has pneumatic drives, which lend it high stabilization and low maintenance.
Model
D-80
Production capacity
2400 blisters/hour
Max. forming area & Depth
105*70 (standard depth≤15mm), Max.Depth 25mm (customized)
Standard stroke range
30-80 mm (can be designed as per user’s required)
Standard plate size
80*70mm (can be designed as per user’s required)
Air pressure
0.4-0.6Mpa
Total power
220V single phase 50Hz 2.8Kw
Main motor power
0.75Kw
PET Film
0.15-0.5*110mm
PET/AL/PE composite film
0.02-0.035*110mm
Dialysis paper
50-100g*110mm
Overall dimension
1600*600*1100mm
Gross Weight
500Kg
